PVC Conduit Sch 40 – 30° Special Radius Elbows
• Rated for use with 90-degree C wire.
• Sunlight resistant rated. Complies to ANSI/UL 651 file number E546229 and NEMA TC2.
• Constructed from SCH.40 PVC for added strength and durability.
• Designed for both outdoor and indoor applications.
• Ideal for aboveground and underground installations.
• NFPA 70 National Electrical Code.
Non-stock special radius sweeps are subject to minimum order quantities, special pricing, and extended lead times.
Please contact our Customer Service team for details and availability.

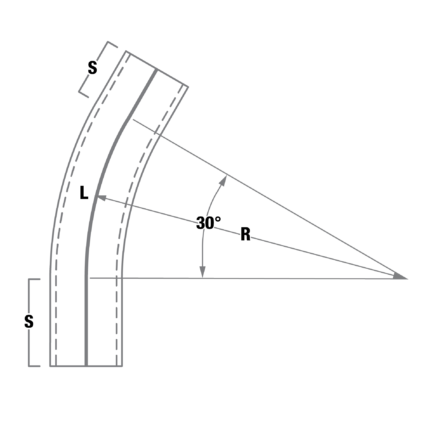

Schedule 40 – 30°
Special Radius – 18″
| Part Number | Size | R | S | L |
| PE10U30R18 | 1″ | 18 | 1.875 | 9.4248 |
| PE11U30R18 | 1-1/4″ | 18 | 2 | 9.4248 |
| PE12U30R18 | 1-1/2″ | 18 | 2 | 9.4248 |
| PE20U30R18 | 2″ | 18 | 2 | 9.4248 |
| PE21U30R18 | 2-1/2″ | 18 | 3 | 9.4248 |
| PE30U30R18 | 3″ | 18 | 3.125 | 9.4248 |
Special Radius – 24″
| Part Number | Size | R | S | L |
| PE10U30R24 | 1″ | 24 | 1.875 | 12.566 |
| PE11U30R24 | 1-1/4″ | 24 | 2 | 12.566 |
| PE12U30R24 | 1-1/2″ | 24 | 2 | 12.566 |
| PE20U30R24 | 2″ | 24 | 2 | 12.566 |
| PE21U30R24 | 2-1/2″ | 24 | 3 | 12.566 |
| PE30U30R24 | 3″ | 24 | 3.125 | 12.566 |
| PE31U30R24 | 3-1/2″ | 24 | 3.25 | 12.566 |
| PE40U30R24 | 4″ | 24 | 3.375 | 12.566 |
Special Radius – 36″
| Part Number | Size | R | S | L |
| PE10U30R36 | 1″ | 36 | 1.875 | 18.8496 |
| PE11U30R36 | 1-1/4″ | 36 | 2 | 18.8496 |
| PE12U30R36 | 1-1/2″ | 36 | 2 | 18.8496 |
| PE20U30R36 | 2″ | 36 | 2 | 18.8496 |
| PE21U30R36 | 2-1/2″ | 36 | 3 | 18.8496 |
| PE30U30R36 | 3″ | 36 | 3.125 | 18.8496 |
| PE31U30R36 | 3-1/2″ | 36 | 3.25 | 18.8496 |
| PE40U30R36 | 4″ | 36 | 3.375 | 18.8496 |
| PE50U30R36 | 5″ | 36 | 3.625 | 18.8496 |
| PE60U30R36 | 6″ | 36 | 3.75 | 18.8496 |
| PE80U30R36 | 8″ | 36 | 4 | 18.8496 |
Special Radius – 48″
| Part Number | Size | R | S | L |
| PE10U45R48 | 1″ | 48 | 1.875 | 25.1327 |
| PE11U45R48 | 1-1/4″ | 48 | 2 | 25.1327 |
| PE12U45R48 | 1-1/2″ | 48 | 2 | 25.1327 |
| PE20U45R48 | 2″ | 48 | 2 | 25.1327 |
| PE21U45R48 | 2-1/2″ | 48 | 3 | 25.1327 |
| PE30U45R48 | 3″ | 48 | 3.125 | 25.1327 |
| PE31U45R48 | 3-1/2″ | 48 | 3.25 | 25.1327 |
| PE40U45R48 | 4″ | 48 | 3.375 | 25.1327 |
| PE50U45R48 | 5″ | 48 | 3.625 | 25.1327 |
| PE60U45R48 | 6″ | 48 | 3.75 | 25.1327 |
| PE80U45R48 | 8″ | 48 | 4 | 25.1327 |
Special Radius – 60″
| Part Number | Size | R | S | L |
| PE20U30R60 | 2″ | 60 | 2 | 31.416 |
| PE21U30R60 | 2-1/2″ | 60 | 3 | 31.416 |
| PE30U30R60 | 3″ | 60 | 3.125 | 31.416 |
| PE31U30R60 | 3-1/2″ | 60 | 3.25 | 31.416 |
| PE40U30R60 | 4″ | 60 | 3.375 | 31.416 |
| PE50U30R60 | 5″ | 60 | 3.625 | 31.416 |
| PE60U30R60 | 6″ | 60 | 3.75 | 31.416 |
| PE80U30R60 | 8″ | 60 | 4 | 31.416 |
