Schedule 40

Product Details
Schedule 40 PVC Conduit are manufactured with rigid Polyvinyl Chloride (PVC-U) compound according to the specifications of the UL 651 and ASTM D 1784 STANDARD.
  • Rated for use with 90-degree C wire.
  • UL 651 Listed.
  • SUNLIGHT RESISTANT rated according to UL 651 – file number E546229.
  • For underground and above ground usage
  • Rigid nonmetallic raceway for wires and cables
  • 10′ Lengths & 20′ Lengths (on request)

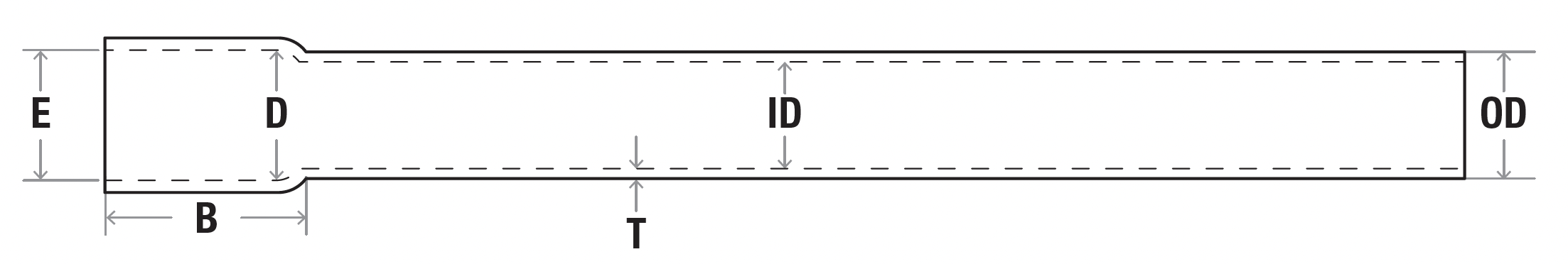

schedule 40 spec drawing

PVC Conduit Sch 40 (Bundle Quantities)
Part No. Size (in) Minimum Wall (in) Average OD (in) Average ID (in) Entrance (E) (in) Bottom (B) (in) Length (ft) Bell End (D) (in) Feet per Bundle
P01UC 1/2 0.109 0.840 0.578 0.852 0.836 10 1.77 6000
P02UC 3/4 0.113 1.050 0.780 1.064 1.046 10 2.16 4400
P10UC 1 0.133 1.315 1.004 1.330 1.310 10 2.56 3600
P11UC 1-1/4 0.140 1.660 1.335 1.677 1.655 10 3.15 3300
P12UC 1-1/2 0.145 1.900 1.564 1.918 1.894 10 3.15 2250
P20UC 2 0.154 2.375 2.021 2.393 2.369 10 3.15 1400
P21UC 2-1/2 0.203 2.875 2.414 2.890 2.868 10 3.15 930
P30UC 3 0.216 3.500 3.008 3.515 3.492 10 3.94 880
P31UC 3-1/2 0.226 4.000 3.486 4.015 3.992 10 3.94 630
P40UC 4 0.237 4.500 3.961 4.515 4.491 10 3.94 570
P50UC 5 0.258 5.563 4.975 5.593 5.553 10 3.94 380
P60UC 6 0.280 6.625 5.986 6.658 6.614 10 5.90 260
P80UC 8 0.322 8.622 7.850 8.670 8.610 10 6.29 180
